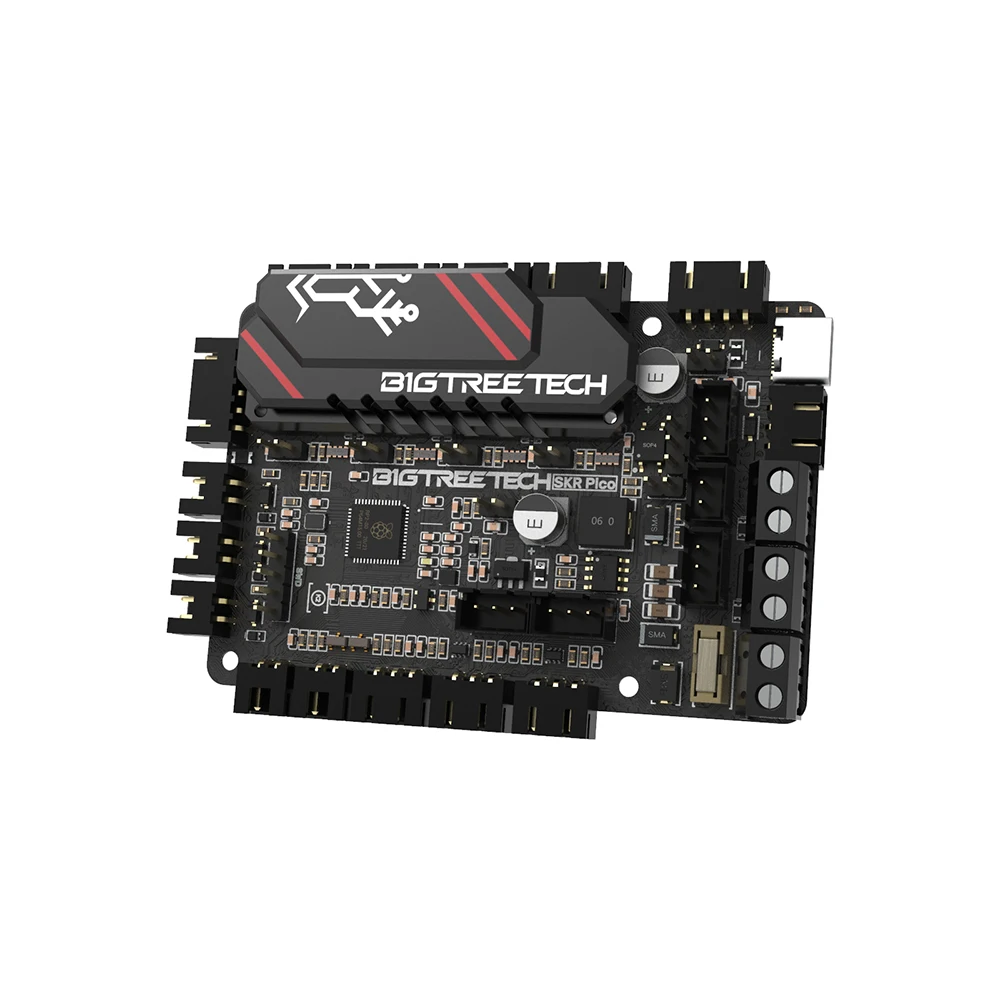

BTT SKR PICO V1.0
APPLICATION: VORON V0
Main Control Chip
Raspberry Pi RP2040 dual-core ARM processor

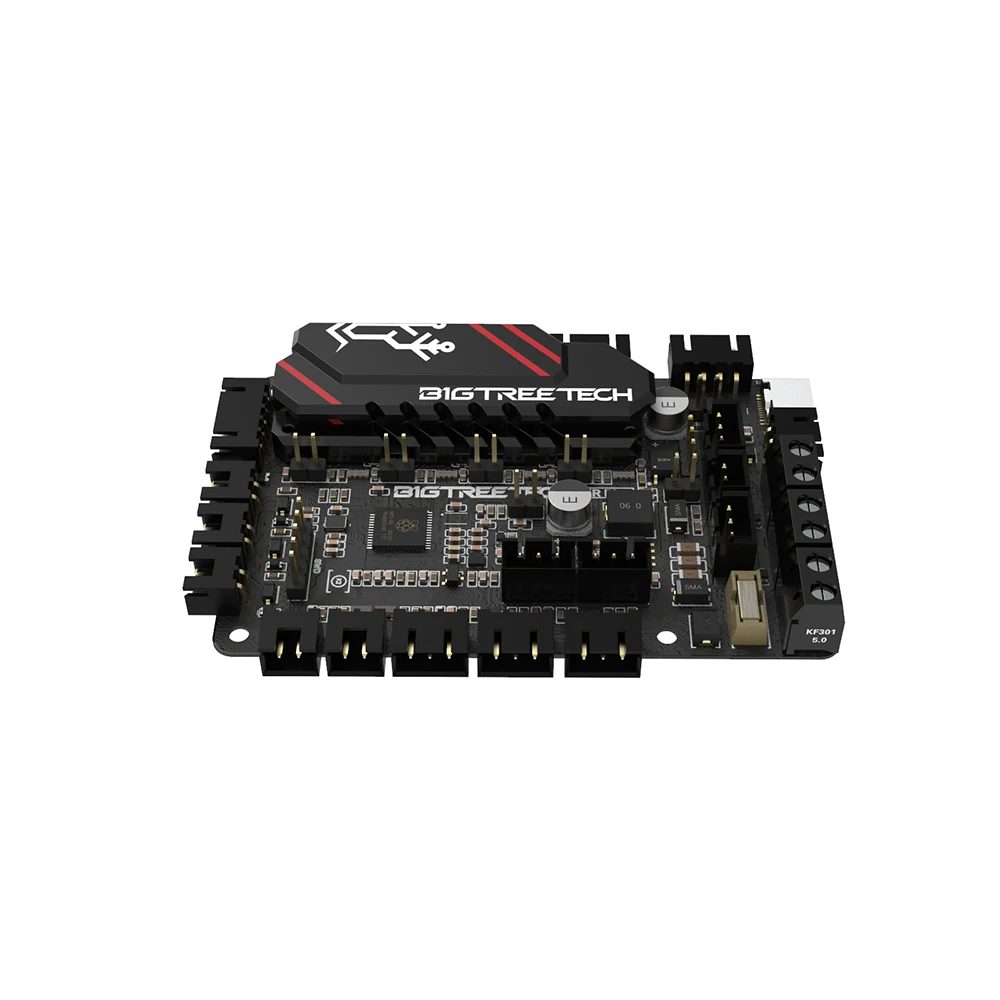

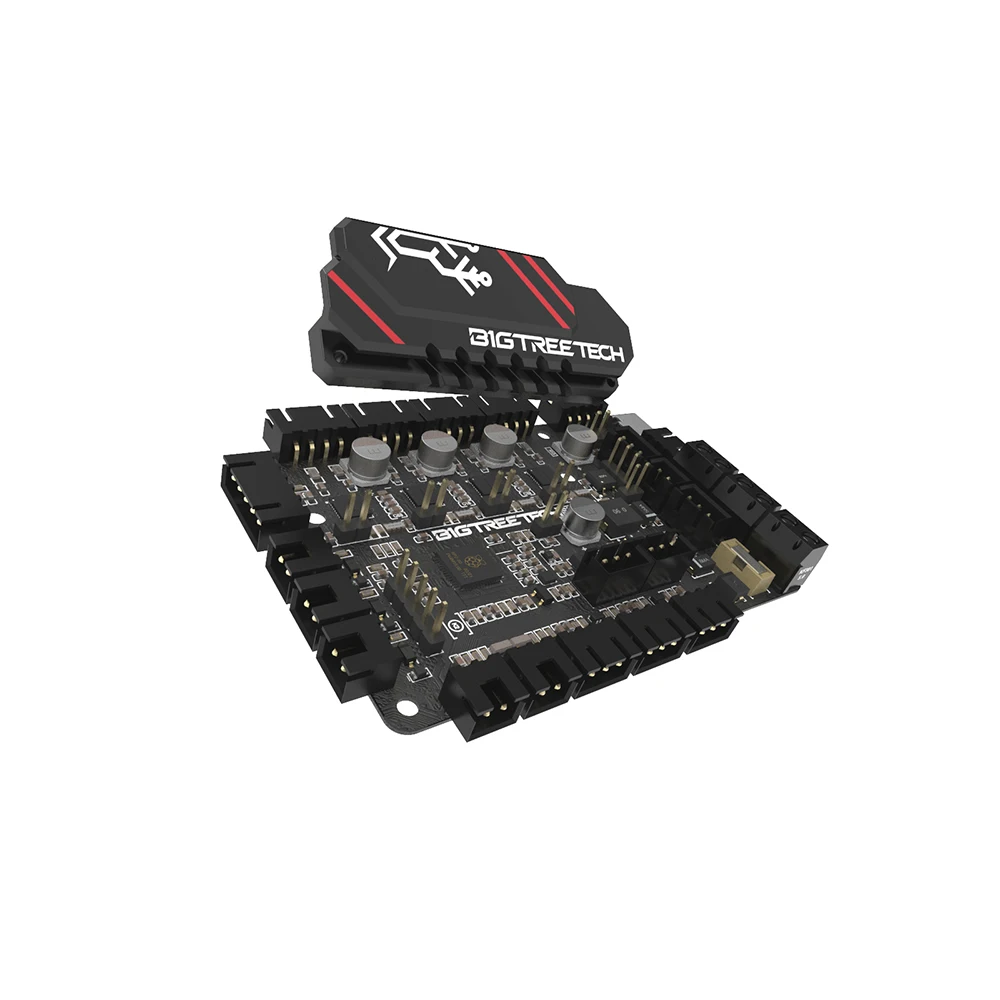

Optimized Heat Sink
Better heat dissipation
Good-looking
Chip Capacitor
Adopting MURATA capacitor

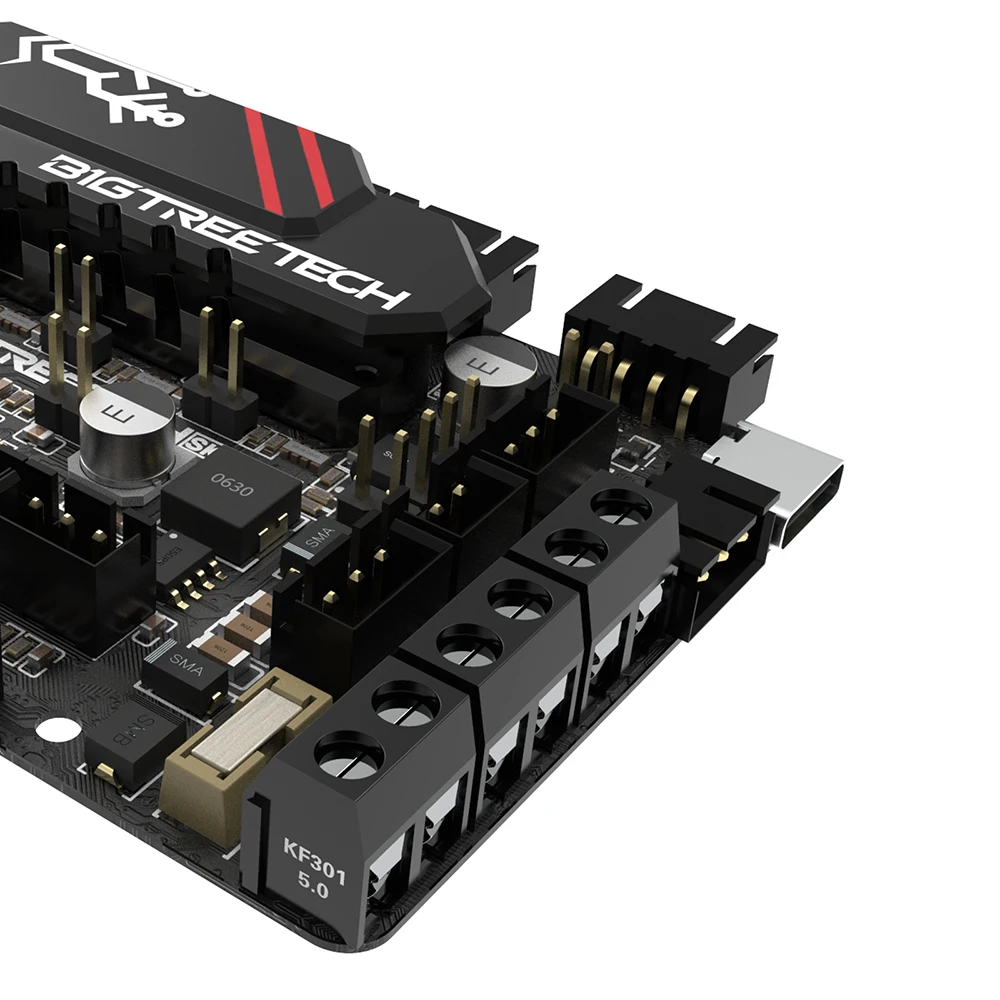

The fuse kit is consist of the holder and fuse, Easy to remove and install
TYPE-C interface for main control communication

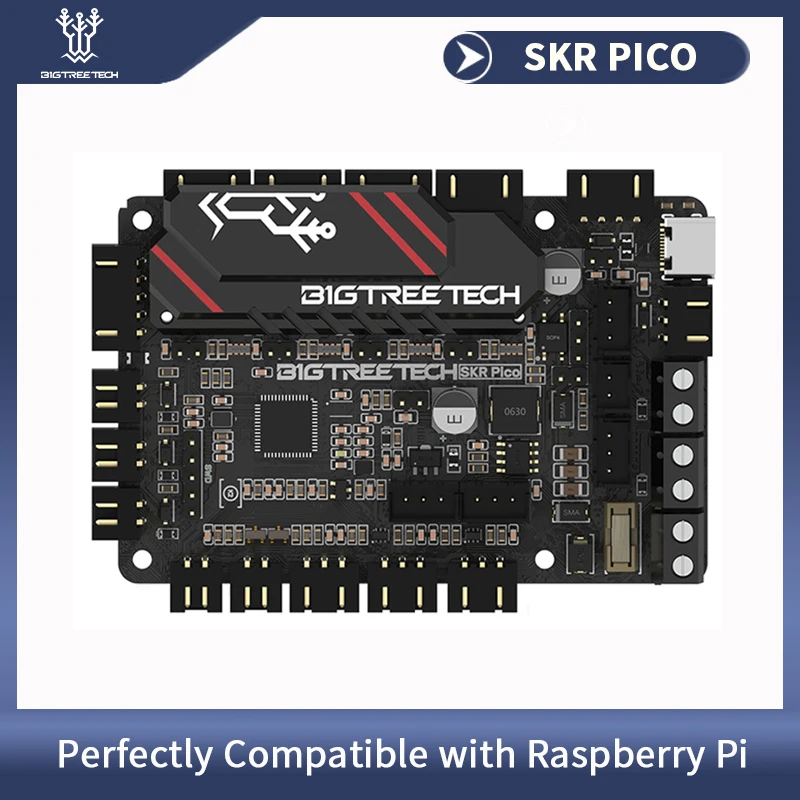

SKR PICO perfectly compatible with Raspberry Pi
With Raspberry Pi Board Frame, Raspberry Pi can be installed directly on the pico.
Designed for Voron V0 3d printer
Parameter
Note: if any of the motor current is over 0.8A, please perform active cooling to the motherboard
| Weight | 0.200 kg |
|---|---|
| Dimensions | 10 × 10 × 10 cm |
| Brand Name | BIQU |
| Origin | Mainland China |
| Item Type | Motherboard |
| Model Number | SKR PICO V1.0 |
| External Size | 85*56mm |
| Board Layer | 4 Layers |
| MCU | ARM Cortex-M0+RP2040 |
| Power input | DC 12/24V |
| Logic Voltage | 3.3V |
| Motor Driver | UART Mode of the on-board TMC2209 |
| Motor Driver interface | X, Y, Z1, Z2, E |
| Temperature sensor interface | TH0, THB, 2-way 100k NTC(RTD) |
